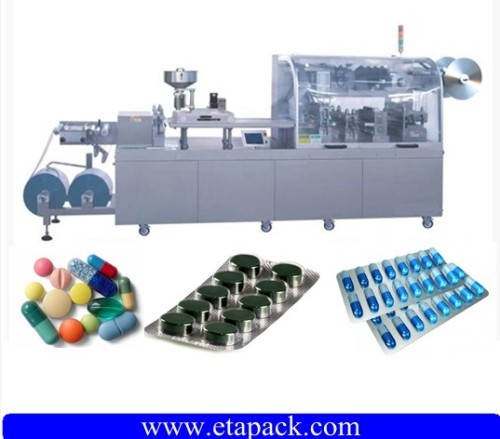

Aluminium plastic Alu-Alu blister packaging machine

Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Fujian, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Packing: wooden case

Processing: Packing Machine

Type: Special

Production Capacity: 50 sets/ month

Delivery Date: 21 days

Automatic Grade: Automatic

Brand Name: eta

Blister packing machine is suitable for the blister packaging of capsule, tablet, big honey pill, candy, liquid, paste, syringe

Blister packing machine is suitable for the blister packaging of capsule, tablet, big honey pill, candy, liquid, paste, syringe as well as irregular shape tablets, the sealing could be Al-plastic, paper-plastic composite and Al-Al . Blister packaging is widely used in pharmacy, healthcare food, cosmetics, medical equipment industry etc, fully up to GMP standard.

Main parameters

Model: ET-160

Cutting frequency: (Al/plastic) 25-60(times/min) (Al/Al) 20-30(times/min)

Production Capacity: (Al/plastic):6000-14000plates/hour, (Al/Al):4800-7200plates/hour

Max Forming Depth: (Al/plastic):22mm, (Al/Al):18mm

Stroke range: 30-130 mm (could be customized)

Total Power: 220/380V, 50/60Hz (could be customized accordingly)

PVC hard sheet: 0.25-0.5×260 mm

Dialyzing paper: 50-100g×260 mm

PTP Aluminum Foil: 0.02-0.035 ×260 mm

Air source: 06-0.8Mpa

Air consumption: ≥0.3m²
